Other attributes

Warranty	Unavailable
Weight (KG)	13
Place of Origin	Henan, China
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Brand Name	ZZSEGU
Name	5"  Tricone drill bit
Type	IADC 537
Material	Carbide steel
Warranty	1 year remote warranty
Diameter	127mm
Surface Finish	Spray Paint
Advantage	Long Service Life
Feature	Uitra high hardness
Customized	Specification
Color	Customer Required



Product Description

We and our product advantages

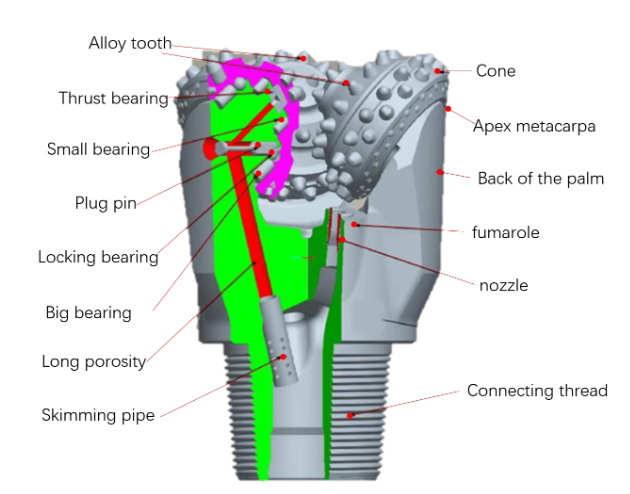

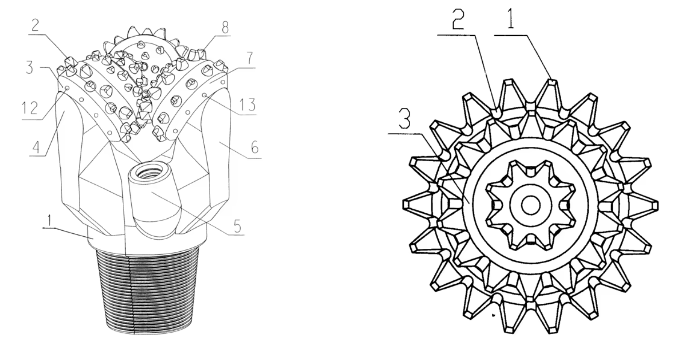

Advantages of cone bit
1.Tungsten carbide hard surfacing welding
Tungsten carbide hard surface surfacing welding is used in the palm lip part to increase the wear resistance of the palm back and the diameter protection effect, and increase the working capacity and service life of the bearing
2.Carbide tooth
The use of high strength and high toughness carbide teeth, improve the impact resistance of teeth to reduce the rate of broken teeth.
3.Diameter guard alloy teeth
The ball face of the bit is provided with diameter protection alloy teeth to protect the bit
4.Silvering
Compared with the traditional process, the silver plating can reduce wear and improve the utilization of the drill bit.
Our company can provide specific solutions according to the actual drilling situation, customized arbitrary diameter assembly drill bits, including large caliber pile drill, special-shaped drill, reaming drill, directional drill and so on.



Cone size and model comparison table
Size		Model(IADC)
Inch	mm	Insert cone bit	Steel tooth cone bit
6	152.4	517, 537,617, 637	126.127.216.217. 316.346.347
6 1/2	165.1	517, 537	126.127.216.217. 316.346.347
7 7/8	200	517,527,547,617,627,000	126.127.216.217. 316.346.347
8 1/2	215.9	437,447,517,537,617,000,000	126.127.216.217. 316.346.347
9 1/2	241.3	437,517,537,547,617	126.127.216.217. 316.346.347
9 5/8	244.5	437,517, 537,547,617	126.127.216.217. 316.346.347
9 7/8	250.8	437,517, 537,547,617	126.127.216.217. 316.346.347
12 1/4	311.1	437,517, 537,547,617,627,637	126.127.216.217. 316.346.347
17 1/2	444.5	517,537,617,627,637	126.127.216.217. 316.346.347
24	609	417,517, 537,547,617,637	126.127.216.217. 316.346.347
26	660	417,517, 537,547,617,637	126.127.216.217. 316.346.347





Standard for connecting threads of cone bits
Cone bit diameter		Connecting threads
in	mm	Rotary shoulder type external thread connection code	Shoulder chamfer diameter mm (±0.4)
3 1/2 - 4 1/2	88.9 - 114.3	2 3/8REG	78.2
4 5/8 - 5	117.5 -127	2 7/8REG	92.5
5 1/8 - 7 3/8	130.2 - 187.3	31/2REG	105.2
7 1/2 - 9 3/8	190.5 - 238.1	4 1/2REG	136.1
9 1/2 - 13 3/4	241.3 - 349.3	6 5/8REG	187.7
14 - 14 3/8	355.6 - 365.1	6 5/8REG	187.7
14 1/2 - 17 1/2	368.3 - 444.5	6 5/8REG OR 7 5/8REG	187.7 OR 215.9
17 5/8 - 18 1/2	447.7 - 469.9	6 5/8REG OR 7 5/8REG	187.7 OR 215.9
18 5/8 - 26	473.1 - 660.4	7 5/8REG OR 8 5/8REG	215.9 OR 243.3
≥27	≥685.8	8 5/8REG	243.3



Product features and uses

1. The floating bearing structure is adopted, and the floating element is made of new material with high strength, high elasticity, high temperature resistance and high wear resistance. The surface is treated by solid lubricant.
2, the use of high-precision rubber seal. The optimized sealing compression ensures that the two metal ring sealing surfaces are always in good contact.
3, steel ball locking cone, adapt to high speed.
4, the use of all-rubber oil storage sac that can limit the pressure difference and prevent drilling fluid from entering the lubrication system provides a good lubrication guarantee for the bearing system.
5, the use of 250°C high temperature, anti-wear new grease.
6. The tooth surface of the steel tooth bit is welded with a new wear-resistant material, which improves the life of the bit cutter while maintaining the high mechanical drilling rate of the steel tooth bit.
Cone bit is widely used in oil and gas drilling, water well, geothermal drilling, coal mine exploration, mining, bridge construction and so on.



Specification

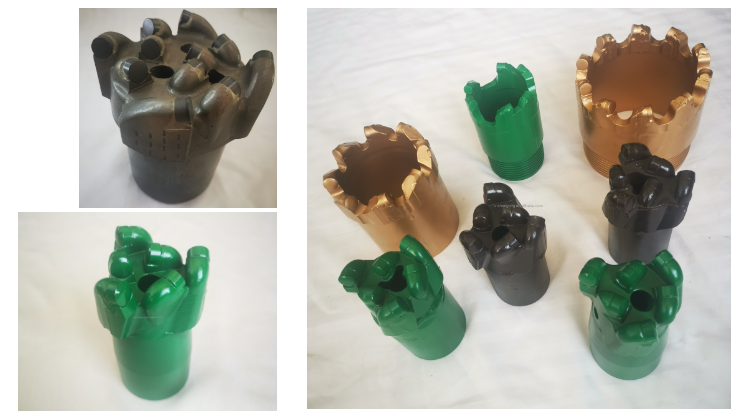

Description of PDC drill bit
1.Suitable for soft, medium and hard formations.
2.Super strong material promotes gauge wear resistance to provide long bit life.
3.The cutter’s back rake has been unique design, reducing the bit torque and increasing aggressiveness.
4.Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each bladewiththe proportional fluid flow.



Application
Our PDC drill bits are widely used in various industries, such as coal mining, petroleum exploration, geological exploration, water conservancy and hydropower, railway and highway, tunnel construction, etc.
Steel drill bits are used for drilling blowholes, drainage holes, and grouting holes in coal mines and water conservancy projects; Blade drills are mainly used for drilling soft media formations, such as mudstone, limestone, shale, sandstone, and granite.

Project View
Diamond composite disc (PDC) is a special superhard material synthesized by synthetic diamond and hard alloy under high temperature conditions. It not only has the advantages of high hardness and wear resistance of diamond, but also has the characteristics of strong impact resistance and large cutting edge of hard alloy. Using it as the blade of the drill bit can greatly improve the work efficiency of the drill bit, making it an ideal drill bit for drilling in hard rock layers and hard rock layers.



Why did you choose us?

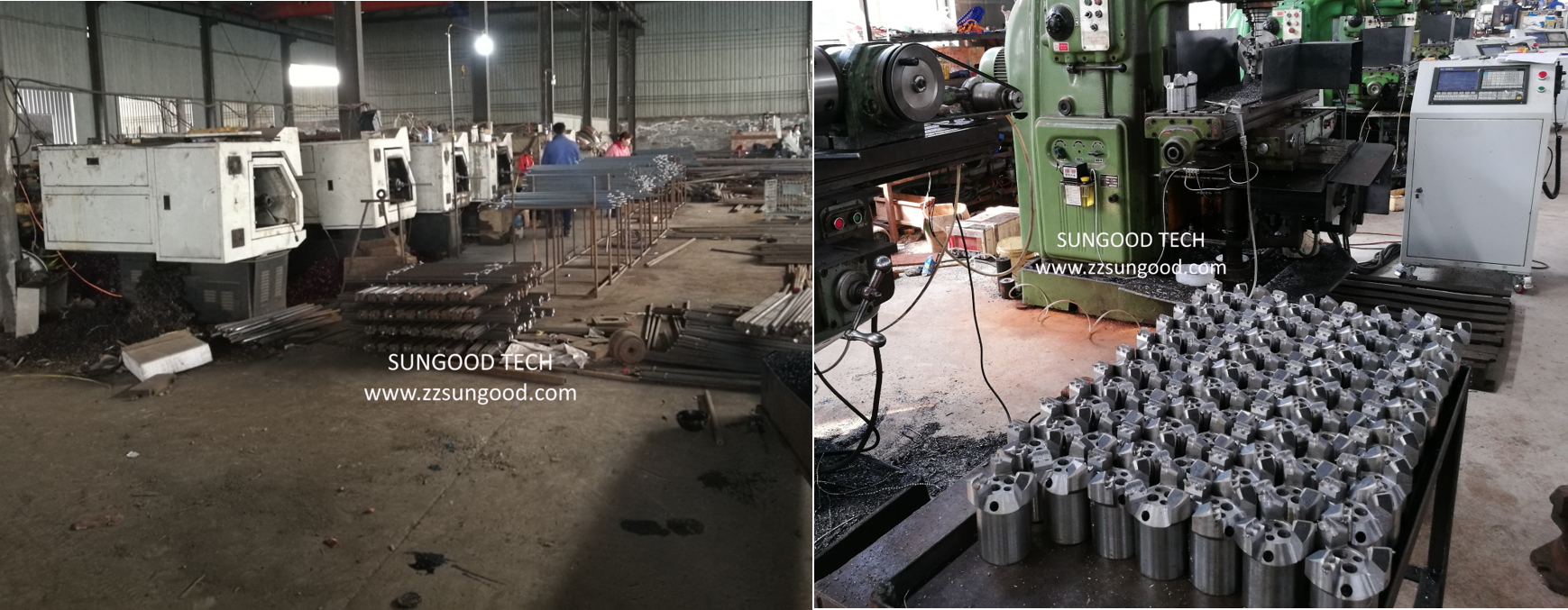

    Zhengzhou Sungood New Material Technology Co., Ltd. has 15 years of professional experience in the production of mining machinery mining tools and accessories, cable specialized materials, and other products. Its main products include PDC cutting tools, PDC drill bits, diamond drill bits, saw blades, polishing and grinding tools, cable armor aluminum strips, etc. Our products are sold to multiple countries and regions, and we have established stable cooperative relationships with more than 20 customers worldwide. In order to respond to customer needs faster and provide better product quality, a new integrated platform for research and development, production, sales, and after-sales service was established in 2023. We hope to provide you with more satisfactory and comprehensive services.

What can we offer you？

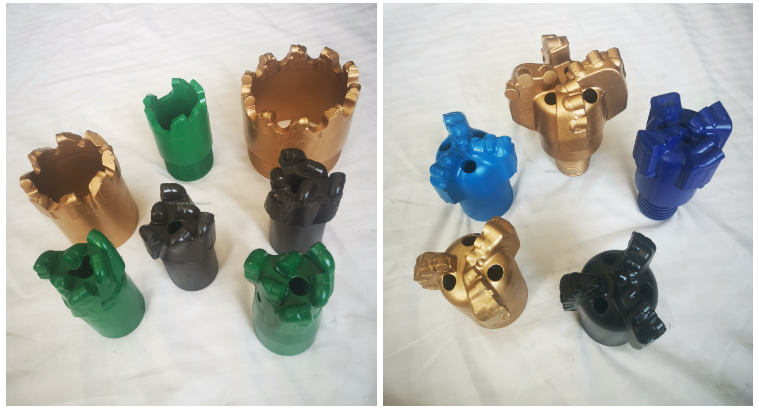

    Zhengzhou Sungood New Material Technology Co., Ltd. has been developing new products mainly based on diamond composite materials and efficiently producing the following drilling tools:
※ PDC cutting tools/blades: 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1913... petroleum or mining types.
※ PDC core drill bits: diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm, 190mm, 216mm，.......
※ PDC non core drill bits: including arc angle drill bits, flat top drill bits, and concave drill bits, providing products of any size from 50mm to 300mm. According to your needs, you can produce products such as two wings, three wings, and four wings;
PDC anchor rods for roof bolt support: diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm
Hard alloy drill bits: double wing coal drill bits, chisel drill bits, cross drill bits, button drill bits, hammer heads
According to your needs, we can provide you with customized products, including trademarks, packaging, etc

Body Material
1.Steel body:suitable for soft to medium hard chunks of homogeneous,hard and abrasive high formation.
2.Matrix body:Suitable for harder geological conditions

Cutter size	13× 8 mm	The smallest cutter suitable for the hardest rock information ,then the biggest cutter gets the fastest speed.
	13×19 mm
	16×13 mm
	19X13 mm



Unmatched quality gives you peace of mind
Our PDC bits adopt superior material C45# steel, the bits are widely used in hole drilling of geological drilling and water well drilling. They are also widely using in hole drilling of dam construction and water conservancy.



Main features
1) Wear resistance and long service life;
2) Adopting mature process and 100% raw material(Tungsten carbide substrate and diamond powder) to manufacture;
3) Tungsten carbide as the matrix body makes the bit more wear resistance and impact toughness.
4) Diamond polystyrene as the gauge.
5) Suit for drilling hard rocks.

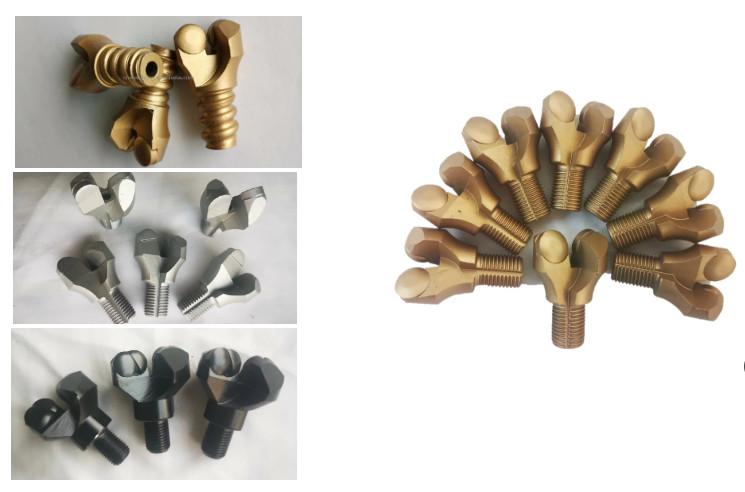

Main parameters and performance of PDC anchor bit:



Diameter (mm)	30	Material	diamond+hard alloy
Length (mm)	32	Production process	high-quality steel forging and forming
Weight on bit (Kg)	300-700	Main Use	Diamond drill bits are mainly used in industries such as coal fields, oil drilling, geological exploration, water conservancy and hydropower,railways and highways, tunnel construction, etc. across the country
Speed (rpm)	300-500
Pump capacity(1/min)	150- 200



Unmatched product performance
Under the same rock layer conditions, the drilling life is 10-30 times that of ordinary alloy bits, and the efficiency is improved by at least 60%. It does not require grinding, greatly reducing the labor intensity of workers and saving labor hours. The key raw materials for the two wing PDC anchor bit (half reinforced) blade are produced by GE Company in the United States. Its diamond content is 1.5 times that of a regular drill bit, with excellent wear resistance, significantly improved efficiency, and reduced overall cost. It is suitable for medium hard rock layers below grade 12.

Special dimensions of PDC drill bits
If you need a special design and size PCD drill bit, please do not forget to provide the following important information for our engineers' reference:
1. Type of drilling conditions (coal mining, geological drilling, quarries, etc.).
2. Formation type and hardness.
3. Requirements for drilling depth.
4. Special design precise drawings.


Type: 5inch IADC 537 Tricone drill bit Rock Bit Material:Carbide Use: Tunnel construction Energy drilling Manufactuer: SUNGOOD TECH Brand: ZZSEGU
