1. Material: How Does It Withstand Extreme Conditions?

The material selection for a well drilling rig air compressor directly determines its reliability and service life. As it operates in harsh environments with vibration, dust, and high load, all core components use high-strength, wear and corrosion-resistant materials

• ​​Compression Cylinder​​: Made from ​​high-strength alloy cast iron​​ or ​​forged steel​​, offering tensile strength and fatigue resistance to ensure no deformation or bursting under continuous high-pressure impact
• ​​Piston and Piston Rod​​: Typically made from ​​high-strength alloy steel​​. The piston rod surface is often ​​hard chrome plated​​ to provide extreme surface hardness and wear resistance, combating abrasive particles and corrosion
• ​​Air Valves​​: Valve plates and springs are made from ​​special stainless steel​​ or ​​engineering plastics (like PEEK)​​ to ensure fatigue life and sealing under high-frequency cycling and high-pressure air impact.
• Cooling System​​: The intercooler and aftercooler heat exchange tubes use ​​copper alloy​​ or ​​stainless steel​​ for optimal thermal conductivity and corrosion resistance.
• Sealing Elements​​: ​​Oil-free self-lubricating materials​​ like ​​filled PTFE​​ or ​​metal rings​​ are standard, ensuring effective sealing without lubricating oil, guaranteeing pure output air.

2. Purpose: Where is It Specifically Used?

This compressor is specifically designed for ​​Down-The-Hole (DTH) Drilling​​ and is the indispensable "heart" of this process. Its main purposes include:

• Core Power​​: Providing power to the ​​pneumatic impactor hammer​​ downhole, driving its internal piston to strike the drill bit at high frequency, thereby breaking the rock.
• Borehole Cleaning & Cuttings Removal​​: Delivering large volumes of compressed air down the drill string to the bottom of the hole. While powering the DTH hammer, it blows the crushed rock cuttings and dust up the annulus (the space between the drill pipe and the borehole wall) to the surface. This keeps the bottom hole clean, prevents re-grinding of cuttings, and increases the rate of penetration (ROP).
• Bit Cooling​​: The high-velocity airflow effectively cools the DTH hammer and drill bit, preventing damage from overheating.
• Auxiliary Functions​​: In some cases, the compressed air can also be used for auxiliary operations like borehole stabilization.

3. Function: What Specific Roles Does It Perform?

Its function goes far beyond simply "compressing air." It is an integrated system for power delivery, material transport, and cooling

• Air Compression​​: Intakes ambient air and boosts its pressure to working levels between ​​1.7 MPa and 2.5 MPa (approx. 17-25 Bar)​​ through multi-stage compression, while providing a ​​very large volume flow rate​​ (often tens of cubic meters per minute).
• Air Purification​​: Built-in ​​multi-stage air filters​​ and ​​moisture/oil separators​​ remove water, dust, and any potential oil from the air, protecting the intricate internal parts of the impactor hammer from contamination and corrosion.
• Cooling​​: ​​Intercoolers​​ and an ​​aftercooler​​ efficiently reduce the temperature of the compressed air. This increases air density and operational efficiency while protecting downstream equipment.
• Power & Transport​​: It uses the high-pressure air as both an ​​energy carrier​​ (to do work) and a ​​material transport carrier​​ (to remove cuttings), accomplishing both tasks simultaneously.

4. Features: What Makes It Unique?

Designed for the harsh conditions of the drilling site, these compressors have distinct features:

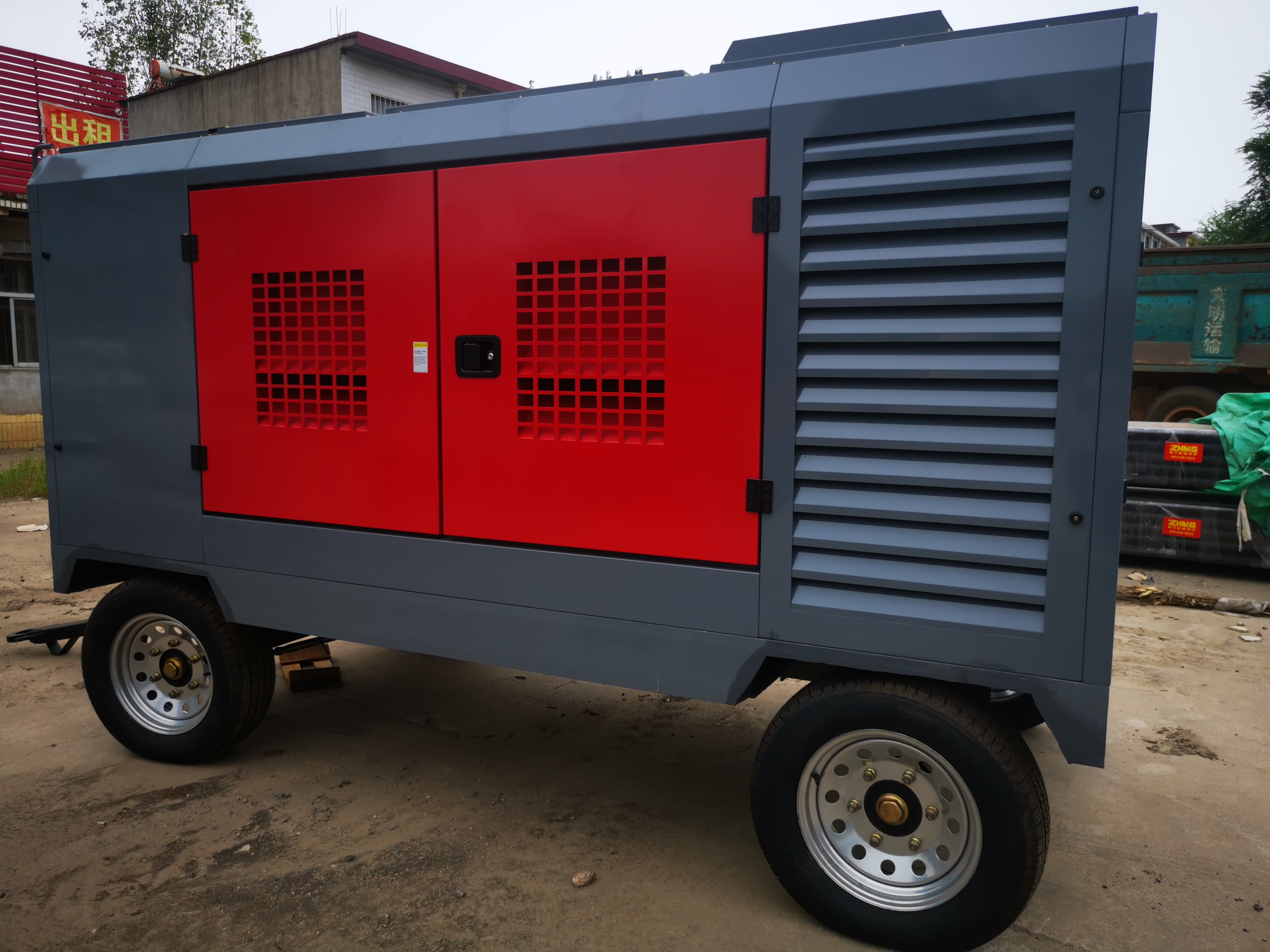

• ​​Mobile Integration​​: They are typically integrated with a  ​​diesel engine​​, ​​chassis​​, ​​fuel tank​​, and ​​control system​​ into a ​​mobile compressor unit​​, often mounted on a truck or crawler carrier for flexible movement and operation in the field.
• High Reliability​​: Ruggedly built to withstand long periods of continuous high-load operation and field vibrations with low failure rates.
• High Volume & Medium Pressure​​: The key characteristic is not extreme pressure, but delivering the ​​largest possible volumetric flowrate within a medium-high pressure range​​ to meet the extreme airflow demands for cuttings removal.
• Full Oil-Free Design​​: The compression chambers are completely oil-free, delivering 100% oil-free air. This prevents oil mist from contaminating groundwater and avoids oil sludge clogging the impactor hammer's airways.
• ​​Strong Environmental Adaptability​​: Equipped with efficient intake pre-filtration systems to protect the host in dusty environments; cooling systems capable of maintaining operation in high ambient temperatures.

5. Principle: How Does It Work?

Its operating principle is based on ​​reciprocating piston​​ technology and ​​multi-stage compression​​, but focuses more on flow rate and efficiency compared to stationary high-pressure compressors.

• •​​Power Input​​: A ​​diesel engine​​ (the choice for most field operations) or electric motor provides the primary power, driving the compressor block via a coupling or belts.
• •​​Multi-Stage Compression​​: Air is compressed sequentially by multiple cylinders with progressively smaller diameters. Each compression stage increases pressure and temperature.
• •​​Intercooling​​: After each compression stage, the hot, high-pressure gas enters an ​​intercooler​​. Cooling reduces the air temperature, decreases the power required for the next compression stage, and increases air density, allowing a greater flow of compressed air for the same power input. This is key to ensuring efficiency and volume output.
