What is the Center Column on a Mining Concave PDC Bit?
Aug 27,2025
1. What is the Center Column on a PDC Bit?

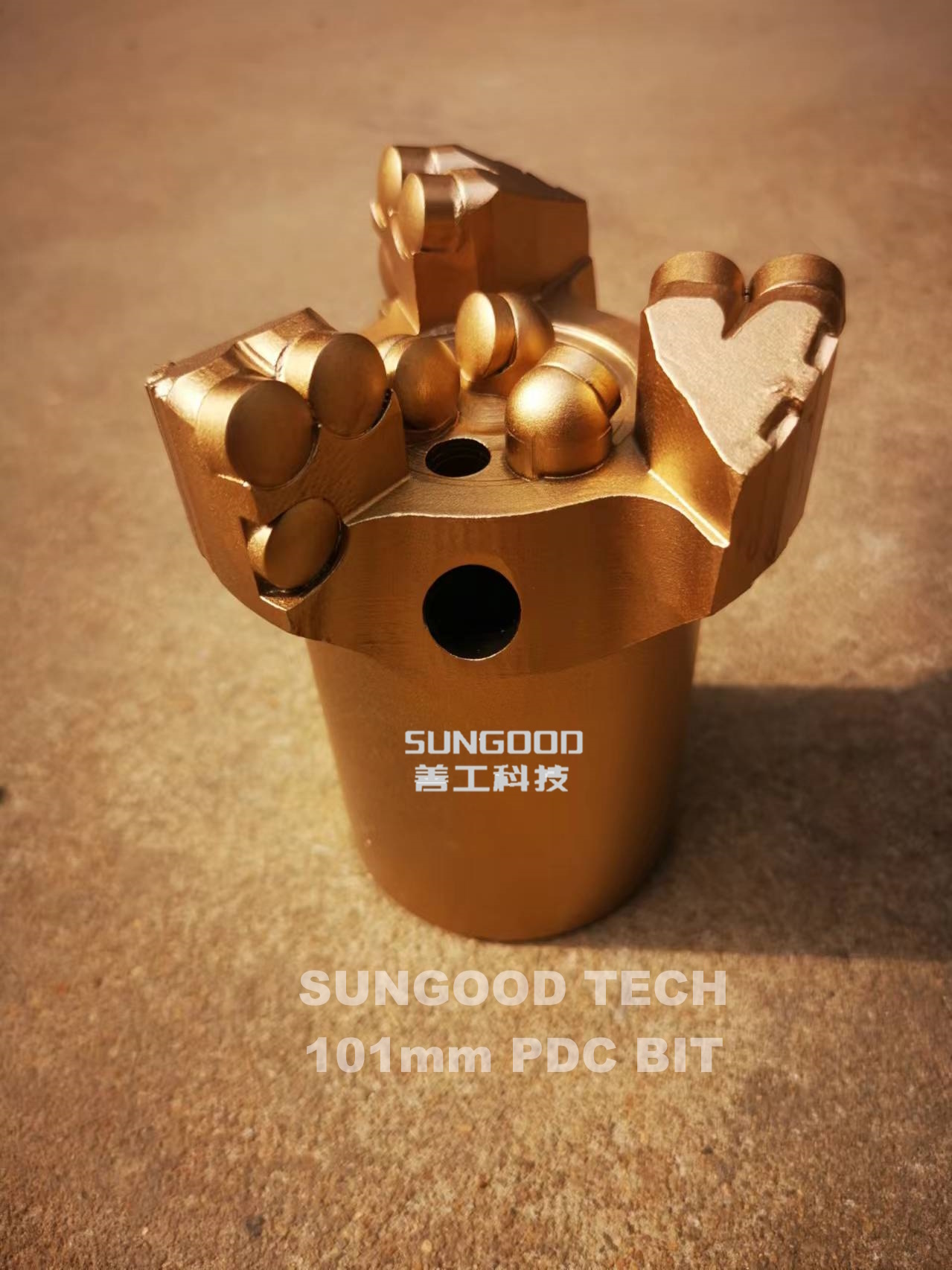

In the context of mining PDC bits, specifically the concave type, the center column (or columns) is the defining structural element. It refers to one or more pillar-like structures that protrude upwards (towards the drill string) from the center of the bit body.
Visualization: Imagine the crown of the PDC bit having a sunken, "concave" profile like a basin. The center column is the pillar or pillars standing tall in the middle of this basin.
Construction: Typically manufactured from high-strength alloy steel integral to the bit body, the surface of these columns is embedded with multiple PDC cutters (Polycrystalline Diamond Compact cutters) via brazing.
Design Purpose: This innovative concave structure combined with the center column addresses common challenges faced by conventional flat-profile or convex PDC bits in hard, abrasive, interbedded, or fractured formations.
2. What Role Does the Center Column Play?
The center column design represents a significant evolution in PDC bit technology, serving several crucial functions:
Enhanced Cuttings Removal & Cooling: This is the core function. The concave area creates a natural flow channel. Drilling fluid (mud) is directed more efficiently to the bit's center, effectively evacuating rock cuttings and ensuring critical cooling for the PDC cutters located in the center zone. This prevents "bogging" (bit balling) and thermal damage to the cutters, which are common issues in standard bits where fluid flow to the center is poor.
Improved Stability & Steerability: The PDC cutters on the center column contact the rock first, providing a stable "pivot point" for the entire bit. This effectively suppresses lateral vibrations and prevents "whirling," greatly improving the bit's directional control and borehole quality. Reduced vibration also minimizes catastrophic cutter fracture and damage to the Bottom Hole Assembly (BHA).
Increased Rock-Breaking Efficiency:
Dual Shearing Action: The center column's cutters perform pre-breaking and plowing, gouging into the rock formation first and destroying its integrity. The outer, primary PDC cutters on the bit blades then efficiently scrape away this pre-fractured rock, creating a highly effective cooperative rock-breaking model.
Prevents Centerline Wear: In a standard PDC bit, the center cutters have almost zero rotational speed, primarily grinding against the rock, which leads to rapid wear. The center column design allows these cutters to achieve a more effective shearing action, significantly improving durability and the Rate of Penetration (ROP) in the center.
Adaptability to Complex Formations: In fractured, interbedded, or heterogeneous formations, the stabilizing effect and leading crushing action of the center column help prevent bit deviation, skipping, and bouncing, ensuring a smoother, more controlled drilling process.
3. Two vs. Three Center Columns: Is There a Noticeable Difference in Performance?
Yes, the difference is distinct and significant. The number of center columns is a key design parameter that directly influences the PDC bit's performance characteristics and application suitability.
Feature | Dual Center Column PDC Bit | Triple Center Column PDC Bit |
|---|---|---|
Structural Design | Two separate pillar structures, symmetrically distributed. | Three separate pillar structures, typically in a triangular symmetric pattern. |
Stability | Excellent Stability. Provides a reliable stabilizing pivot, effectively suppressing vibrations. | Superior Stability. The three-point support principle offers the highest resistance to whirling and vibrations, providing the best steerability and borehole quality. |
Aggressiveness / ROP | Generally Higher. The structure is more open, providing greater space for cuttings removal and lower cutting resistance. Often achieves a higher ROP in medium to hard formations. | Balanced. The structure is denser with more rock contact area, requiring greater Weight on Bit (WOB) to fracture rock. May offer higher efficiency in extremely hard, abrasive formations, but ROP might be slightly lower in softer formations. |
Target Formations | Broader Application. Ideal for medium-hard to hard formations, as well as those with interbedded soft/hard layers and slightly fractured rock. The most widely used type. | Specialized Application. Designed for extremely hard, highly abrasive, severely fractured, or vibration-prone formations. Its extreme stability manages the most challenging downhole conditions. |
Cuttings Removal | Wider flow channels facilitate excellent cuttings evacuation and cooling. | A more complex structure requires optimized hydraulic parameters to ensure sufficient fluid flow for cooling and cleaning in the center area. |
Selection Guidance:
Choose a Dual Center Column Bit: When targeting formations that are not extremely challenging and you prioritize a high ROP and overall cost-effectiveness. This is the versatile and popular choice for a wide range of conditions.
Choose a Triple Center Column Bit: When drilling through exceptionally hard, abrasive, or severely fractured formations where excessive vibration threatens BHA integrity, bit lifespan, and borehole quality. This design trades off some potential ROP for unparalleled stability and reliability, ensuring the drilling operation can proceed safely and consistently.
For engineers and procurement specialists looking to delve deeper into the specifications and application guidelines for high-performance PDC bits with advanced center column designs, companies like SUNGOOD TECH provide detailed technical resources and product data sheets that can inform your equipment selection strategy.
