How to Select Tricone Bits Based on Geological Conditions: Unlock Efficient Drilling
Jun 25,2025
Choosing the right tricone bit for specific geological conditions is the cornerstone of efficient drilling operations. Formation characteristics—including lithology, hardness, abrasiveness, and downhole environment—dictate the optimal bit type, bearing design, and cutting structure. Proper geological assessment before bit selection can significantly extend bit life, increase rate of penetration, and reduce overall drilling costs.
On the rig floor, choosing the wrong tricone bit for complex formations can delay operations, increase costs, or even cause wellbore failure. Geological conditions hold the key to precision selection.
I. Decoding Formation Characteristics: Core Selection Criteria
- Lithology & Hardness:
- Soft shale/sandstone? Use milled tooth bits with wide/long teeth for efficient cutting.

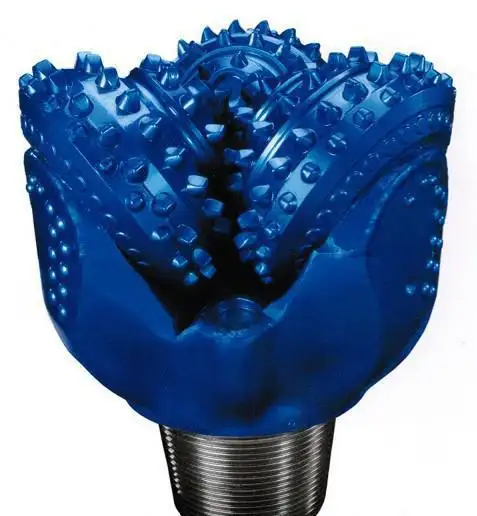

- Hard conglomerate or chert? TCI (Tungsten Carbide Insert) bits offer 3x+ steel strength for extreme abrasion resistance.
- Soft shale/sandstone? Use milled tooth bits with wide/long teeth for efficient cutting.
- Drillability & Abrasiveness:
- High-abrasion formations (e.g., quartz sandstone) demand reinforced gauge protection to prevent premature diameter loss. Prioritize IADC code’s "Abrasiveness Grade" (7th digit).
- High-abrasion formations (e.g., quartz sandstone) demand reinforced gauge protection to prevent premature diameter loss. Prioritize IADC code’s "Abrasiveness Grade" (7th digit).
- Downhole Environment:
- HP/HT wells? Metal-sealed bearings (250°C+ rating) outperform rubber seals.
- H₂S presence? Require sulfur-resistant steel and specialty seals.
- HP/HT wells? Metal-sealed bearings (250°C+ rating) outperform rubber seals.
II. Tricone Bit Types Demystified
- Milled Tooth vs. TCI:
Milled tooth (IADC 1-series) for soft-medium formations; TCI (IADC 5/7-series) dominates medium-hard to hard rock. - Sealed vs. Open Bearings:
Open bearings suit shallow wells; sealed bearings (sliding/rolling + seals) prevent solids ingress in deep/complex wells. - Gauge Protection:
Tungsten-enhanced gauge teeth or diamond pads combat abrasion and well deviation.
III. SUNGOOD TECH: Your Intelligent Drilling Partner
Navigating geological complexity requires data-driven precision. SUNGOOD TECH integrates material science and downhole dynamics to deliver:
- Geology-Bit Matching Database: 5,000+ global well logs correlated with optimal bit parameters.
- Pre-Drilling Simulation: Proprietary software models bit-rock interaction to predict ROP/durability, reducing trial costs.
- Full-Spectrum Solutions: Custom TCI/sealing/gauge configurations for soft sediments to ultra-hard formations – boosting ROP by 15-40% and reducing trips.
Formation Type | Lithology | Recommended Bit | IADC Code | Key Feature |
|---|---|---|---|---|
Soft | Shale, clay, salt | Milled Tooth | 1xx | Long, wide teeth for fast cutting |
Medium-soft | Sandstone, soft limestone | TCI Insert | 5xx | Tungsten carbide inserts |
Medium-hard | Hard shale, limestone | TCI Insert | 6xx | Enhanced wear resistance |
Hard, abrasive | Quartzite, chert | TCI Insert | 7xx | Maximum abrasion resistance |
High-temperature | Geothermal wells | Metal-sealed bearing | — | Withstands 250°C+ |
H2S environment | Sour gas wells | Anti-sulfur steel bit | — | Specialized seals and materials |
Efficient Drilling Starts with Precision Matching.
Geological conditions remain the primary driver of tricone bit selection. By systematically analyzing formation lithology, hardness, abrasiveness, and downhole environment, drilling teams can optimize bit performance and minimize costly trial-and-error. SUNGOOD TECH's intelligent matching platform further enhances this process through data-driven precision selection.
#TriconeBitSelection #ZZSEGU
Frequently Asked Questions
© 2026 Zhengzhou Sungood New Materials Technology Co., Ltd. | www.zzsungood.com | ZZSEGU Brand |
Technical data compiled from customer post-run reports, and published engineering references. No operational guarantee implied.
