Don’t Let Thread Confusion Cost You Millions
Jun 30,2025
⚙️ Decoding the 3 Thread Superpowers
1. Metric Thread (ISO 68-1) – The Precision King
- Profile: 60° symmetrical V-shape, flat crest/root
- Power Move: Dominates EU/Asia machinery; *coarse threads (M8, M12) handle vibration; fine threads (M12×1.25) enable micro-adjustments*.
- Code Secret: M20×2.5-6H/6g = Diameter (20mm) × Pitch (2.5mm) + Tolerance (6H=internal, 6g=external).
2. Unified Thread (ASME B1.1) – America’s Workhorse
- Profile: 60° angle with rounded root (fatigue-resistant)
- TPI Trick: Coarse UNC (e.g., 1/2-13) for quick assembly; UNF (1/2-20) for high-strength joints.
- Military-Grade: Spec 2A/2B tolerances ensure interchangeability – critical for rapid tool changes.
3. British Pipe Thread (BS 21) – The Seal Master
- 55° Magic: Self-sealing taper (1:16) under pressure.
- Life-or-Death Difference:
- BSPP (G): Parallel threads + O-ring for low-pressure hydraulics.
- BSPT (R/Rp): Tapered threads – metal-to-metal seal for 10,000 psi wellheads.
- BSPP (G): Parallel threads + O-ring for low-pressure hydraulics.
💥 Thread Conversion: Your Survival Kit
Formula: Pitch (mm) = 25.4 ÷ TPI
*(Example: 1/2-20 UNF → 25.4 ÷ 20 = 1.27 mm pitch)*
Critical Match | Mismatch Risk |
|---|---|
NPT (US) vs. BSPT (EU) | Leaks: 55° vs 60° angle → 17% contact loss |
UNC vs. Metric Coarse | Galling: 1.814 mm vs 1.75 mm pitch → thread stripping |
API NC26 vs. NC38 | Drill string detachment → $180k fishing job |
🔥 Real Case: A North Sea rig used BSPT adaptors on NPT mud pumps → seal failed at 5,200 psi → 340 barrels of fluid spill.

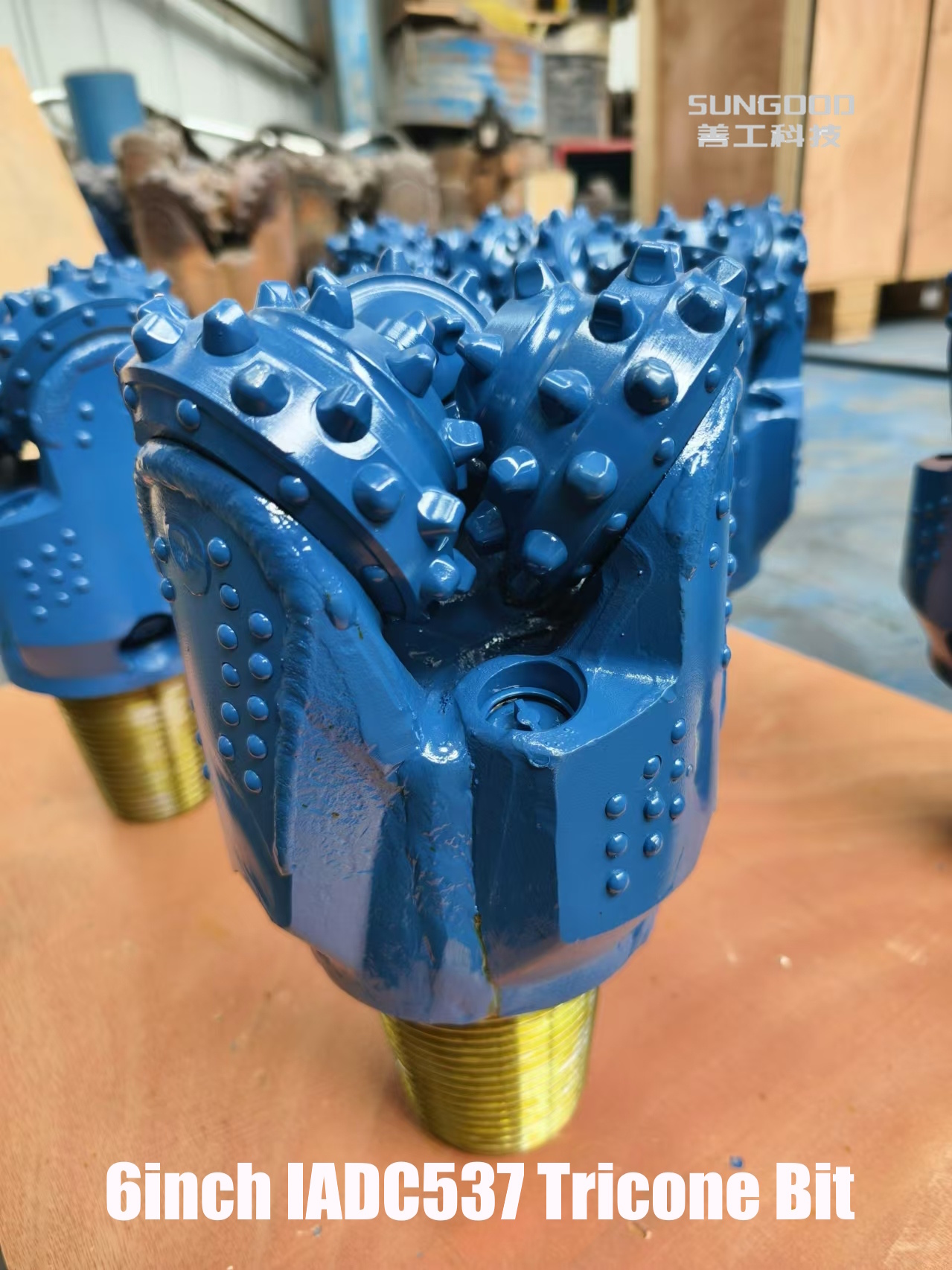

⛏️ PDC Bit Threads: The Hidden Failure Point
API Specification 7-1 governs rotary shouldered connections for drill strings:
- Torque Matters: NC50 thread (4-1/2” FH) handles 40,000 lbf·ft; mis-torquing by 15% cracks roots.
- PDC Bit Killers:
- Cross-threading: Mixing UNC (drill collar) with Metric (bit) → premature cutter loss.
- Incorrect Taper: Using NPT (sealing) instead of API taper (load-bearing) → shoulder separation.
- Contamination: 1g of iron dust in NC40 threads → abrasive wear → 12% torque drop.
Pro Solution: Laser-scan thread profiles post-machining. Deviations >0.03 mm = rejection.
📊 Global Thread Cross-Reference Table
Application | ISO | USA | UK | Critical Spec |
|---|---|---|---|---|
Drill Pipe | — | API NC | — | NC26: 2-3/8" ID, 8 TPI |
Hydraulic Blocks | G | NPT | BSPP | G1/4" = 13.16 mm base dia |
Wellhead Seals | R | — | BSPT | R3/4" taper: 26.44 mm → 25.28 mm over 16mm |
Mud Pump Valves | — | UNJ | — | Radiused root (J) for 200% fatigue life |
🚀 5 Action Steps to Avoid Thread Disasters
- Measure Twice: Use 3-wire method for pitch diameter on critical threads.
- Mark & Document: Engrave thread type (e.g., "NC50") near joints.
- Clean Like Surgery: Ultrasonic-clean API threads before makeup.
- Lubricate Smart: Apply EP grease containing 3% molybdenum disulfide.
- Torque by Chart: Never exceed values in API RP 7G Appendix A.
Tired of thread failures killing your PDC bit ROI?
👉 Get API-Certified Thread Kits for Drill Tools
