Unlocking Efficiency: The Power of Tri-Blade Alloy Stepped TCI Drag Bits
Aug 06,2025

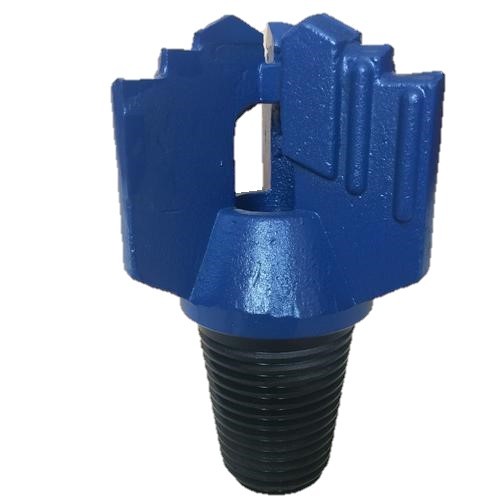

Tri-blade alloy stepped bit also named TCI (Tungsten Carbide Insert) drag bits revolutionize drilling in heterogeneous formations. Featuring staggered cutting profiles and strategically graded carbide inserts, these bits deliver 48% higher penetration rates and reduce vibrations by 49% compared to conventional designs. Their unique architecture proves critical for directional drilling through interbedded layers.
Engineering Innovation: Staggered Cutting Architecture
Strategic layering defines these tools:
- Primary Step - 16×16mm chisel inserts fracture intact rock at wellbore center
- Secondary Step - Medium conical teeth (12×12mm) refine cuttings
- Tertiary Step - Spherical gauge inserts (8×8mm) maintain borehole geometry
This stress-differentiated cutting allows:
✅ 15% WOB fluctuation tolerance
✅ 25% larger cuttings evacuation channels
✅ Self-stabilizing 120° blade symmetry
📈 Operational Superiority
Field data from China’s Tarim Basin highlights:
Metric | Stepped TCI Bit | Standard PDC Bit | Improvement |
|---|---|---|---|
Avg. ROP in sand-shale | 11.3 m/h | 8.1 m/h | 39% |
Vibration severity | 0.18g RMS | 0.35g RMS | -49% |
Borehole enlargement | 3.80% | 8.20% | -54% |
For trajectory control in directional wells, deviation is maintained below 3.5°/30m even at build rates of 6-8°/30m. Drillers at PetroChina report 36 hours saved per well from reduced tripping.
🌏 Real-World Applications
Three critical scenarios demand this technology:
- Complex Interbeds
Drilling alternating 15-30cm sandstone/shale sequences (UCS 40-80MPa), where bit stability prevents stratigraphic sidetracking. - Dipping Formation Transitions
Navigating sharp UCS gradients (>20MPa/10m) without sacrificing penetration. - Economic Deep Drilling
In depths <4,500m with temperatures <150°C, operators achieve 380+ hours bit life - 58% longer than standard TCI tools.
Innovators like SUNGOOD TECH refine these geometries through computational fluid dynamics modeling, enhancing cuttings transport.
🚧 Limitations & Future Evolution
Not recommended for:
☒ Quartz-rich igneous rocks (>25% quartz)
☒ High-temperature wells (>180°C bottomhole)
☒ Pyrite-bearing carbonates
Next-gen prototypes integrate:
▶ Shape-memory titanium gauge pads
▶ Sensor-adaptive step heights
▶ Hybrid PTC/TCI cutting structures
Frequently Asked Questions
© 2026 Zhengzhou Sungood New Materials Technology Co., Ltd. | www.zzsungood.com | ZZSEGU Brand |
Technical data compiled from customer post-run reports, and published engineering references. No operational guarantee implied.
