Product Description
|
Size |
Diameter (mm) |
Height (mm) |
Diamond Layer (mm) |
EX |
SH |
SM |
|
1004 |
10.40 |
4.50 |
1.8-2.2 |
• |
• |
• |
|
1204 |
12.30 |
4.50 |
1.8-2.2 |
• |
• |
• |
|
1304 |
13.33 |
4.50 |
1.8-2.2 |
• |
• |
• |
|
1305 |
13.33 |
5.00 |
1.8-2.2 |
• |
• |
• |
|
1308 |
13.40 |
8.00 |
1.8-2.2 |
• |
• |
• |
|
1313 |
13.40 |
13.20 |
2-2.2 |
• |
• |
• |
|
1613 |
16.05 |
13.2 |
2.2-2.8 |
• |
• |
• |
|
1913 |
19.05 |
13.2 |
2.2-2.8 |
• |
• |
• |
Excellent performance
1.High density (low porosity)
2.High uniformity of composition and structure
3.Excellent adhesion between diamond particles
4.High wear resistance
5.High impact resistance
6.High thermal stability
7.Optimized interface between diamond and tungsten carbide layer for excellent bonding
Advantages of PDC cutter
PDC (Polycrystalline Diamond Compact) cutting tools are composed of synthetic diamond and tungsten carbide under high temperature and pressure. It will combine the advantages of diamond and tungsten carbide, and have high wear resistance, high impact resistance, and high thermal stability.
FEATURES AT A GLANCE
1.The PDC cutter of two adhesive components - polycrystalline diamond composite sheet itself and tungsten carbide substrate.
2.As the matrix material of PCD, hard alloy not only has good toughness and certain hardness, but also has high impact strength, weldability, machinability, and compatibility with PCD.
3.The size of polycrystalline diamond composite sheets can be enlarged, and through laser cutting, they can be made into specific shapes to meet the requirements of different tools.

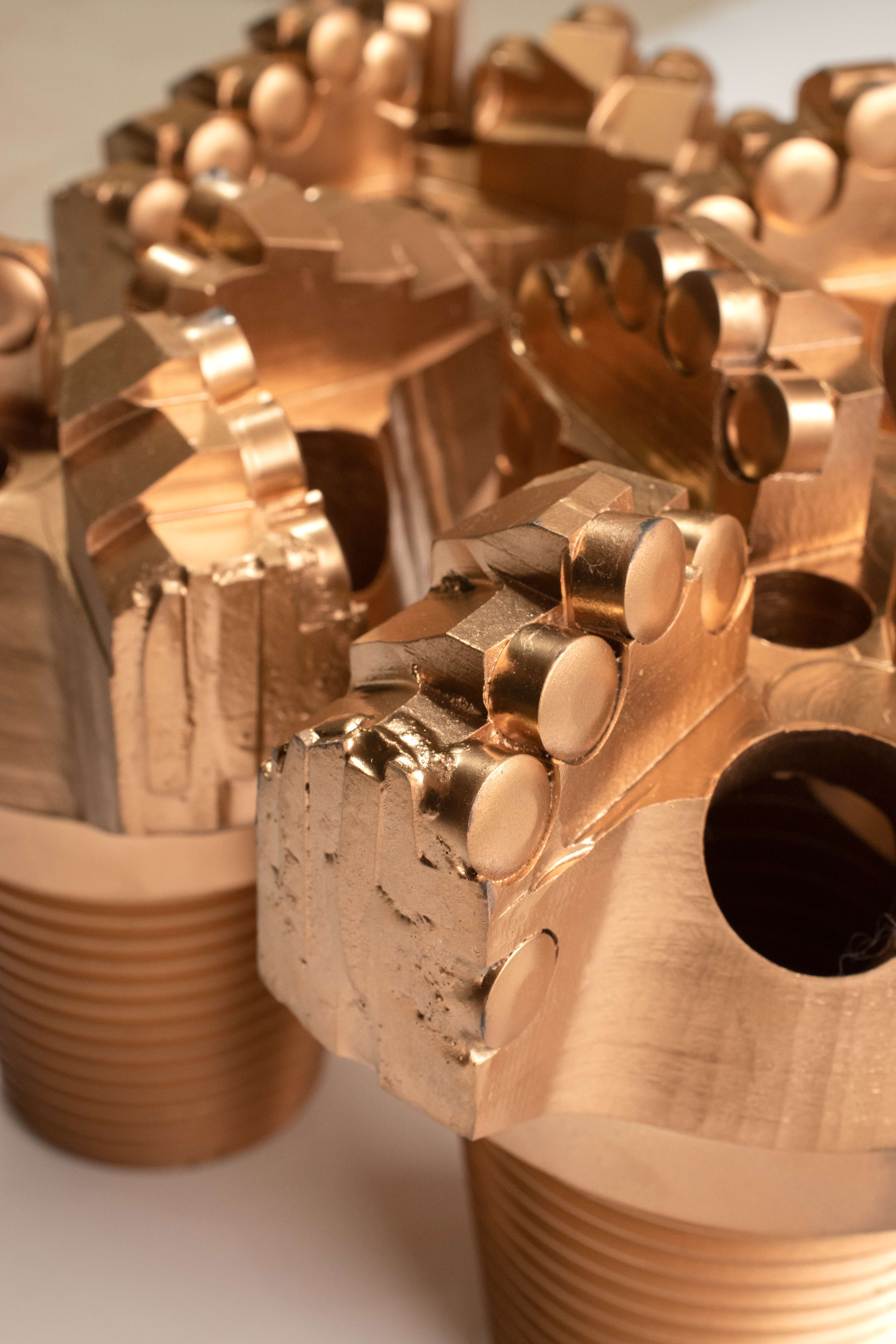

Drilling and mining of PDC cutter
Suitable for drilling in soft and medium hard geological conditions with high impact toughness and thermal stability. High temperature resistance up to 750 ℃ (2 minutes), this product can be combined with flat and various groove shapes, and groove shapes can be designed, ground, products with special shapes, polished, chamfered, etc. according to user needs.
PRODUCT SPECIFICATIONS
Product Specification Data Reference
PCD cutters come in different specifications and sizes. Please choose the appropriate PCD cutter based on the type of drill bit and working environment. Please provide the following important information for our engineers' reference:
1. Type of drilling conditions (coal mining, geological drilling, quarries, etc.).
2. Formation type and hardness.
3. Drilling depth requirements.
4. Special design precise drawings.
|
Specification |
Diameter |
High |
Diamond layer |
Diamond chamfer |
Hard alloy chamfering |
|
pdc1005 |
10mm |
5mm |
1.8-2.5mm |
0.3mm×45° |
0.5mm×45° |
|
pdc1304 |
13.3mm |
4.5mm |
2.0-2 2mm |
0.3mm×45° |
0.5mm×45° |
|
pdc1308 |
13.44mm |
8.00mm |
1.8-2.5mm |
0.3mm×45° |
0.5mm×45° |
|
pdc1313 |
13.44mm |
13.20mm |
1.8-2.5mm |
0.3mm×45° |
0.5mm×45° |
|
pdc1608 |
16.00mm |
8.00mm |
1.8-2.5mm |
0.3mm×45° |
0.5mm×45* |
|
pdc1613 |
16.00mm |
13.20mm |
1.8-2.5mm |
0.3mm×45° |
0.5mm×45° |
|
pdc1908 |
19.05mm |
8.00mm |
1.8-2.5mm |
0.3mm×45° |
0.5mm×45° |
|
pdc1913 |
19.05mm |
13.20mm |
1.8-2.5mm |
0.3mm×45° |
0.5mm×45° |
|
pdc1925 |
19.05mm |
25.00mm |
2.0-2.5mm |
0.3mm×45° |
0.5mm×45° |
Main features
1) Wear resistance and long service life;
2) Adopting mature process and 100% raw material(Tungsten carbide substrate and diamond powder) to manufacture;
3) Tungsten carbide as the matrix body makes the bit more wear resistance and impact toughness.
4) Diamond polystyrene as the gauge.
5) Suit for drilling hard rocks.
Why did you choose us?
Zhengzhou Sungood New Material Technology Co., Ltd. has 15 years of professional experience in the production of mining machinery mining tools and accessories. Its main products include PDC cutting tools, PDC drill bits, diamond drill bits, etc. Our products are sold to multiple countries and regions, and we have established stable cooperative relationships with more than 20 customers worldwide.
What can we offer you？
Zhengzhou Sungood New Material Technology Co., Ltd. has been developing new products mainly based on diamond composite materials and efficiently producing the following drilling tools:
※ PDC cutting tools/blades: 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1913... petroleum or mining types. ※ PDC core drill bits: diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm,113mm, 124mm, 127mm, 132mm, 146mm, 153mm, 190mm, 216mm，.......
※ PDC non core drill bits: including arc angle drill bits, flat top
drill bits, and concave drill bits, providing products of any size from 50mm to 300mm. According to your needs, you can produce products such as two wings, three wings, and four wings; PDC anchor rods for roof bolt support: diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm Hard alloy drill bits: double wing coal drill bits, chisel drill bits, cross drill bits, button drill bits, hammer heads According to your needs, we can provide you with customized products, including trademarks, packaging, etc
PACKAGING AND DELIVERY
Single carton box package, safe and regular placement.
Samples are shipped by express, batch products are shipped by sea or by air.
Delivery: 1-5 days for samples, 1-15 days for batch products.
