Product Description

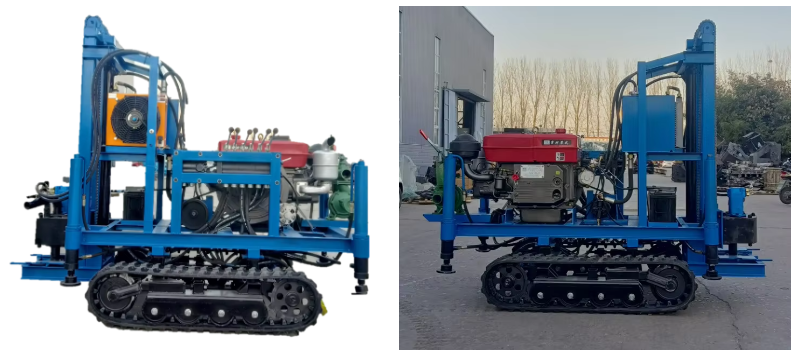

Hydraulic rotary water well drilling rig
When a wheeled rig cannot reach the borehole location — hillside terraces, narrow mountain paths, wet paddy-field edges — a crawler platform with a foldable mast is the practical answer. This 25HP full-hydraulic diesel rig reaches 150 meters depth and gets there under its own power on terrain where conventional transport fails.
The fully hydraulic drive removes mechanical gearboxes from the equation. Rotary speed and feed force adjust continuously to match what the formation needs: slow and heavy for moderately consolidated limestone, faster and lighter for soft alluvial clay or siltstone. At 130m, the rig covers most agricultural irrigation wells and rural domestic supply boreholes across Southeast Asia, South Asia, and Sub-Saharan Africa. When the project requires greater depth or a larger borehole on the same crawler concept, the [40HP 200m Wheeled/Crawler Diesel Hydraulic Drilling Rig] extends capacity.
Mast folds for flatbed trailer transport. Mud pump, drill pipe, bit, and water swivel included. Custom depth and mast configurations available.
Place of Origin | Henan, China |
Weight | 920 KG |
Warranty | 1 Year |
Core Components | Motor, Pump, Other, Gear, Bearing, Engine, Gearbox, Valve group, Internal ratchet, Piston, Operating valve |
Key Selling Points | Portability |
Brand Name | ZZSEGU |
Dimension(L*W*H) | 210*110*192mm |
Product name | Hydraulic water wells drilling rig |
Model | Spiral water well drilling rig |
Power Type | Diesel |
Drilling method | Rotary |
Drilling Diameter | 300mm |
Weight | 920kg |
Drilling Depth | 130M |
Power | 25HP Single Cylinder Diesel Engine |
Advantage1 | Portability |
| Advantage2 | Adjustable suspension |
Advantages of Hydraulic rotary water well drilling rig
1, the diesel engine is equipped with electric start, easy to start, reduce the labor intensity of the operator.
2, the drilling machine adopts hydraulic working principle, equipped with radiator, drilling machine sustainable rate work.
3, equipped with high-power hydraulic motor, the power head can turn positive and negative.
4, drilling frame is equipped with hydraulic cylinder, through the operation of the handle can achieve oil pressure lift and drop.
5, the drill comes with water pump, reasonable structure, compact layout, good slag discharge effect.
6, This drilling rig is equipped with crawler tracks for movement, making it suitable for various terrains.
7, The drilling rig is equipped with hydraulic outriggers for self-adjusting drilling balance.
You can send us customized requirements according to your own needs. We have the ability to meet the market's conventional and special specifications.
Thank you for continuing to learn about our company and products, you may find a product that meets your needs.
25HP 150m Small Diesel Hydraulic Portable crawler water well drilling rig for Agriculture and Household
