Product Description

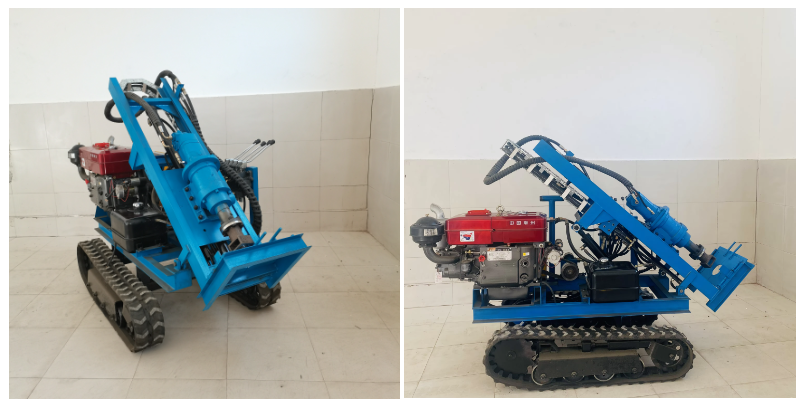

Caterpillar diesel water gas dual use model DTH drilling rig
It has simple structure, small size and light weight. Widely used in open-pit and underground mining and engineering drilling bp hole and anchor cable hole, convenient and flexible.
The drilling machine uses electric energy as power, low noise and strong power. The drilling speed is 3-8 times that of the general rock drill, and the lock drill ore can live a high drilling humidity in the range of Platinell hardness coefficient F≥20, and the drilling depth is about 8-16 meters per hour.
Model | Small track hydraulic down the hole drilling rig | Winching power | Fully hydraulic |
Power | Diesel 25HP hydraulic pneumatic type | Pile driving height | Within 2 meters |
Territory | Engineering rubber track chassis | Pressurized system | Hydraulic cylinder chain force application |
Drilling diameter | 8-30 cm | Sliding frame stroke | 2.6 meters "customizable" |
Adapt to rock types | Medium hard rock f-8-16 | Weight | 830KG |
Gas Consumption | 6 square meters/minute | Oil pump | single pump |
Drilling speed | F=8-12... 100-200 mm/min | Machine dimensions | 205/106/200cm |
Walking speed | 7-15km/h | Heat dissipation method | Air-cooled radiator |
Walking mode | Crawler gearbox travel |
|
|
Solar farm pile foundation drilling demands two things that rarely come in the same machine: a footprint narrow enough to work within inter-row spacing, and enough percussion force to get through granite or basalt (F8–F16 on the Protodyakonov scale) at a pace that keeps the project on schedule.
This 25HP crawler DTH rig covers both. The full-hydraulic crawler undercarriage self-positions without manual repositioning — a practical requirement when drilling hundreds of holes at precise grid spacing across a solar installation site. The DTH air hammer handles rock that would stall a rotary-only rig. Bit diameter range is 90–152mm, covering standard PV pile anchor specifications. For water well projects in similar hard-rock terrain where 200m depth is required, the [58KW 200m Crawler DTH Water Well Drilling Machine]steps up to production well scale.
Air compressor connection accepts external or onboard compressor. Custom BHA for anchor bolt and micropile applications available on request.
China 25HP Small Crawler Diesel Hydraulic DTH Drilling Rig Solar Photovoltaic Pile Driver
