Product Description
|
1.Size: |

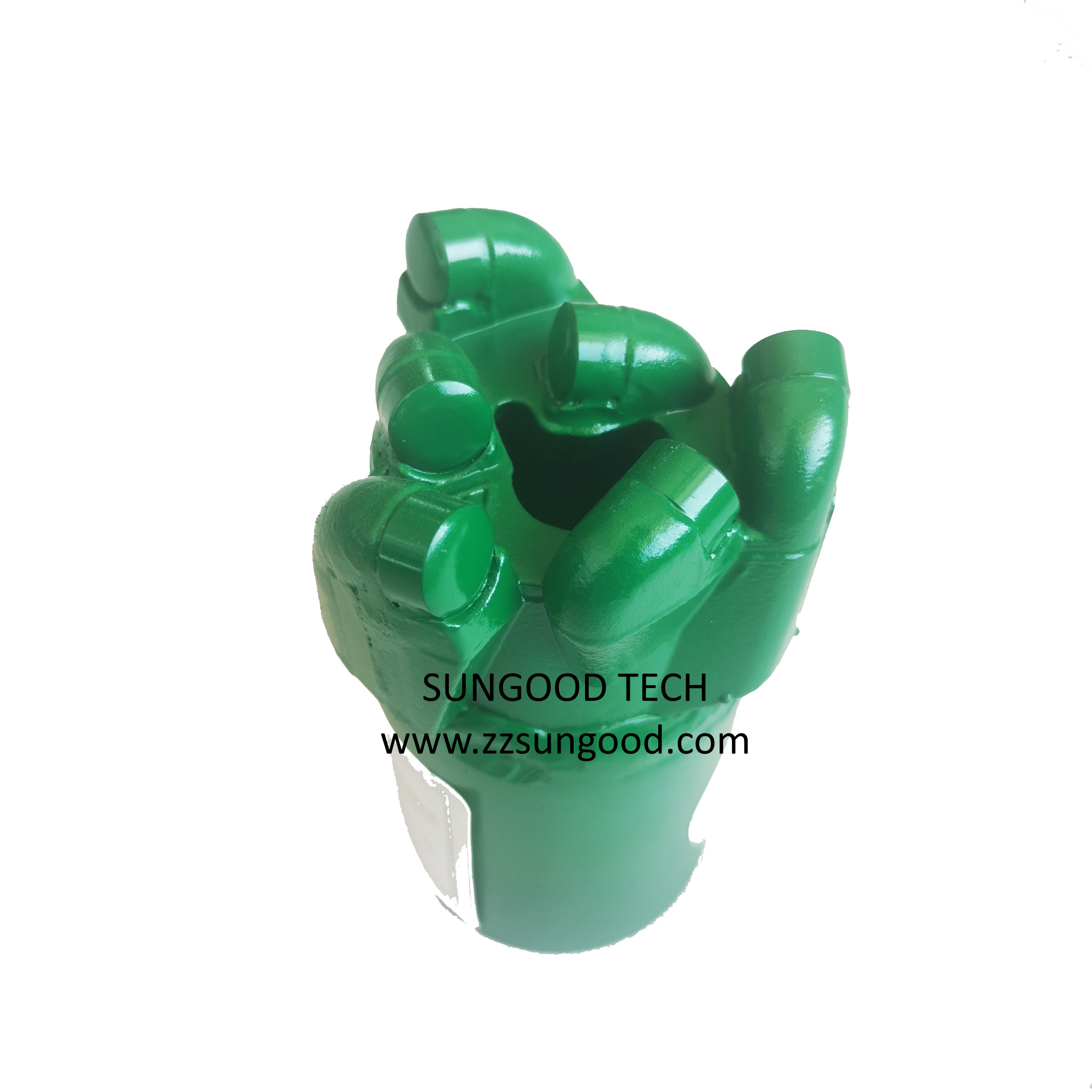

This is 75mm flat top PDC drill bit.Provide any size of 50-300mm, such as 65mm,75mm,94mm,113mm,133mm,146mm,151mm，etc. |
|
2. Drill bit type: |
PDC 6 tooth flat top drill bit, non core drilling,Other types include 4 teeth, 8 teeth, 10 teeth, etc. |
|
3. PDC tool size: |
1304, 1308,1313,1618,1908,etc. |
|
4. Valve body material: |
Hardest diamond composite material, sintered hard alloy, C45 # steel. PDC drill bits of the same size may have different prices due to the use of different grades of diamond blades and main materials. You can choose according to your own needs. |
|
5. Applicable rocks: |
Medium hard and hard rock layers,such as shale, sandstone, granite, marble , etc. |
|
6. Color: |
gray, gold, blue, green,or according to customer requirements |
|
Type |
Adapt to rock formations |
|
Ordinary PDC drill bit |
Soft to medium hard rock with F<10 |
|
Reinforced PDC drill bit |
Medium hard rock with F=10-12 |
|
High strength PDC drill bit |
Hard rock with F<18 |
PDC matrix flat top matrix drill bit（65mm,75mm,98mm,113mm,......）
The ordinary model uses high-quality domestic composite blades as blade blades, while the ultra strong model uses blades produced by GE Company in the United States. Corresponding quality levels are selected according to different geological conditions, which can achieve higher product cost-effectiveness and achieve energy-saving and efficient economic indicators.
Product Video
|
|
|
|
Description of PDC drill bit
1.Suitable for soft, medium and hard formations.
2.Super strong material promotes gauge wear resistance to provide long bit life.
3.The cutter’s back rake has been unique design, reducing the bit torque and increasing aggressiveness.
4.Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each bladewiththe proportional fluid flow.
Project View
Diamond composite disc (PDC) is a special superhard material synthesized by synthetic diamond and hard alloy under high temperature conditions. It not only has the advantages of high hardness and wear resistance of diamond, but also has the characteristics of strong impact resistance and large cutting edge of hard alloy. Using it as the blade of the drill bit can greatly improve the work efficiency of the drill bit, making it an ideal drill bit for drilling in hard rock layers and hard rock layers.
Why did you choose us?
Zhengzhou Sungood New Material Technology Co., Ltd. has 15 years of professional experience in the production of mining machinery mining tools and accessories, cable specialized materials, and other products. Its main products include PDC cutting tools, PDC drill bits, diamond drill bits, saw blades, polishing and grinding tools, cable armor aluminum strips, etc. Our products are sold to multiple countries and regions, and we have established stable cooperative relationships with more than 20 customers worldwide. In order to respond to customer needs faster and provide better product quality, a new integrated platform for research and development, production, sales, and after-sales service was established in 2023. We hope to provide you with more satisfactory and comprehensive services.
What can we offer you？
Zhengzhou Sungood New Material Technology Co., Ltd. has been developing new products mainly based on diamond composite materials and efficiently producing the following drilling tools:
※ PDC cutting tools/blades: 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1913... petroleum or mining types.
※ PDC core drill bits: diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm, 190mm, 216mm，.......
※ PDC non core drill bits: including arc angle drill bits, flat top drill bits, and concave drill bits, providing products of any size from 50mm to 300mm.
※ PDC anchor rods for roof bolt support: diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm
※ Hard alloy drill bits: double wing coal drill bits, chisel drill bits, cross drill bits, button drill bits, hammer heads
Main features
1) Wear resistance and long service life;
2) Adopting mature process and 100% raw material(Tungsten carbide substrate and diamond powder) to manufacture;
3) Tungsten carbide as the matrix body makes the bit more wear resistance and impact toughness.
4) Diamond polystyrene as the gauge.
5) Suit for drilling hard rocks.
Special dimensions of PDC drill bits
If you need a special design and size PCD drill bit, please do not forget to provide the following important information for our engineers' reference:
1. Type of drilling conditions (coal mining, geological drilling, quarries, etc.).
2. Formation type and hardness.
3. Requirements for drilling depth.
4. Special design precise drawings.
