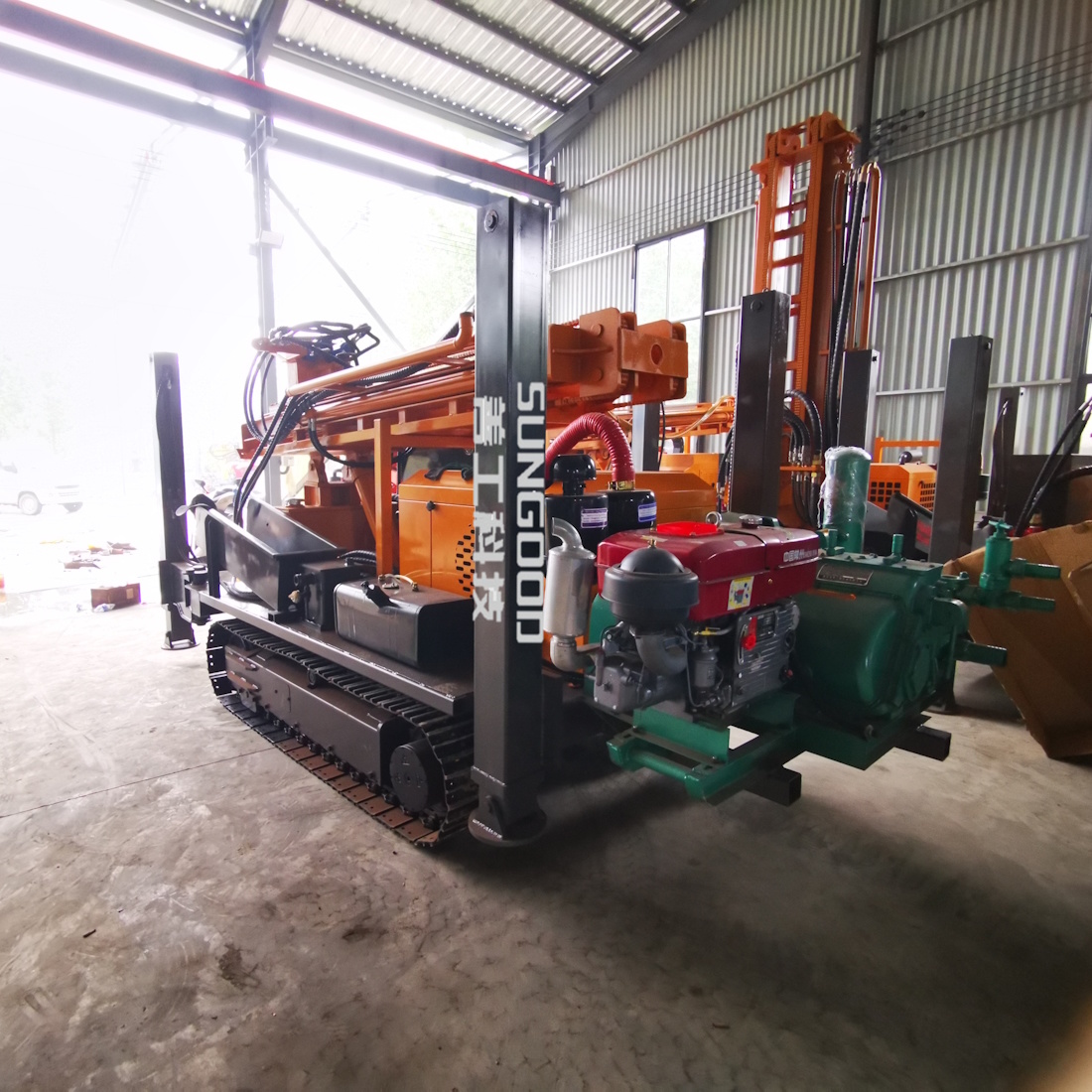

280m crawler Diesel Hydraulic Pneumatic DTH Water Well Drilling Rig
When the aquifer is below 200 meters in granite, basalt, or quartzite, most mid-range crawler rigs run out of penetration rate before they run out of drill pipe. The SG-280J was built for that situation: 77KW diesel power, full DTH percussion to 280 meters depth, in rock up to F16 on the Protodyakonov scale.
The dual-purpose configuration switches between DTH air hammer — for hard consolidated rock intervals — and rotary mud circulation — for overburden, fractured zones, and water-bearing layers that need borehole stabilization. A 77KW hammer at 280m delivers the air pressure and percussion energy to maintain drilling rate in deep basement rock that lower-power rigs stall in. Borehole diameter range of 130–250mm supports large-casing community wells and industrial water supply boreholes, not just slim exploratory holes. The crawler undercarriage includes 360° hydraulic slewing and auto-leveling jacks for stable setup on rocky or inclined terrain. Contractors whose standard project sits at 200m will find the [SG-200J 58KW Crawler DTH Drilling Machine] the right-sized option at reduced capital and operating cost.
Standard BHA: 77KW DTH hammer, drill pipe set, mud pump, rotary head. CE and ISO certified; container-shippable dimensions for export.
Related product: SG-200J 58KW 200m Crawler DTH Drilling Machine — Mid-Range Option at Lower Operating Cost
Power | 77KW YUCHAI OR 76KW YUNNEI Diesel Engine | Maximum aperture | Maximum hole diameter 140-304mm |
| Torque | Torque 4000 to 5300 | Lifting force | Lifting force 15 tonnes |
| Rotational speed | Speed 45-70 rpm | Drill pipe diameter | Drill pipe for 76/89 mm |
| Maximum drilling depth | 280 -300 metres | Drill pipe length | Drill pipe for1.5/ 2/3 metres |
| Drilling efficiency | 10-35m/h | Maximum stroke | Maximum stroke 3.3 metres |
| Size | Length* width* height: | ||
| 3950 * 1750* 2250 mm |
77KW 280m Crawler Diesel Hydraulic Pneumatic DTH Water Well Drilling Machine
