Product Description

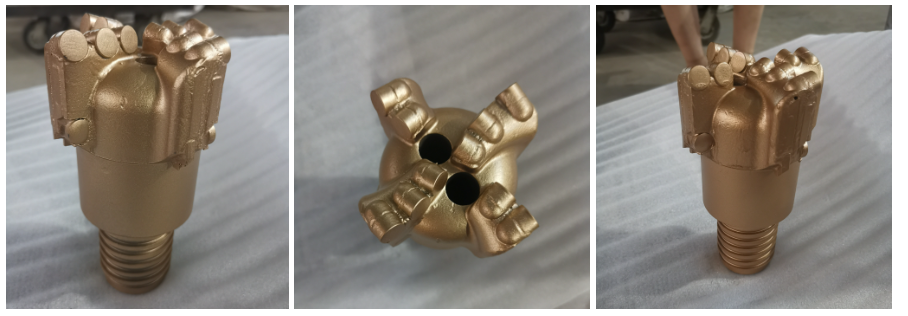

| 105mm 4 Blades PDC drill bit with Long handle male thread | |
|
Diameter (mm) |
105mm -300mm |
|
Weight on bit (Kg) |
5 |
|
Speed (rpm) |
150-250 |
|
Pump capacity (1/min) |
200-250 |
|
Production process |
High quality steel forging and forming, the hardest diamond composite material, and sintered hard alloy |
|
Main purpose |
Flat top PDC drill bits are ainly used for: 1. Gas extraction hole drill;2. Deep holes;3. Grouting hole drilling. 4.Geological exploration drilling; 5. Applicable rock layers: f ≥ 12. |
Product Features
The high-strength diamond drill bit blade adopts the latest developed spherical diamond blade, characterized by fast drilling speed and strong impact resistance. When the drill bit is drilling, the lip is used for scraping the normal and uniform formation rock, and the protruding part can suppress the sudden large footage when the drill bit encounters gaps during the drilling process, greatly reducing the accidental damage of the drill bit and improving the drilling level to deal with complex rock formations.
Product Video
|
|
|
|
Description of PDC drill bit
1.Suitable for soft, medium and hard formations.
2.Super strong material promotes gauge wear resistance to provide long bit life.
3.The cutter’s back rake has been unique design, reducing the bit torque and increasing aggressiveness.
4.Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each bladewiththe proportional fluid flow.
Function
When the drill bits work, the edge is used to cut ordinary and symmetrical formation, while the ledge acts as cushioning toavoidhuge drilling footage, which helps to low the possibility of damage. Thanks to that, the drilling level of complicated formationis improved.
Project View
Diamond composite disc (PDC) is a special superhard material synthesized by synthetic diamond and hard alloy under high temperature conditions. It not only has the advantages of high hardness and wear resistance of diamond, but also has the characteristics of strong impact resistance and large cutting edge of hard alloy. Using it as the blade of the drill bit can greatly improve the work efficiency of the drill bit, making it an ideal drill bit for drilling in hard rock layers and hard rock layers.
Body Material: Our PDC bits adopt superior material C45# steel, the bits are widely used in hole drilling of geological drilling and water well drilling. They are also widely using in hole drilling of dam construction and water conservancy.
|
Cutter size |
13× 8 mm |
The smallest cutter suitable for the hardest rock information ,then the biggest cutter gets the fastest speed. |
|
13×19 mm |
||
|
16×13 mm |
||
|
19X13 mm |
Main features
1) Wear resistance and long service life;
2) Adopting mature process and 100% raw material(Tungsten carbide substrate and diamond powder) to manufacture;
3) Tungsten carbide as the matrix body makes the bit more wear resistance and impact toughness.
4) Diamond polystyrene as the gauge.
5) Suit for drilling hard rocks.
Why did you choose us?
Zhengzhou Sungood New Material Technology Co., Ltd. has 15 years of professional experience in the production of mining machinery mining tools and accessories. Its main products include PDC cutting tools, PDC drill bits, diamond drill bits, etc. Our products are sold to multiple countries and regions, and we have established stable cooperative relationships with more than 20 customers worldwide.
What can we offer you？
Zhengzhou Sungood New Material Technology Co., Ltd. has been developing new products mainly based on diamond composite materials and efficiently producing the following drilling tools:
※ PDC cutting tools/blades: 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1913... petroleum or mining types.
※ PDC core drill bits: diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm, 190mm, 216mm，.......
※ PDC non core drill bits: including arc angle drill bits, flat top drill bits, and concave drill bits, providing products of any size from 50mm to 300mm.
※ PDC anchor rods for roof bolt support: diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm
※ Hard alloy drill bits: double wing coal drill bits, chisel drill bits, cross drill bits, button drill bits, hammer heads
Special dimensions of PDC drill bits
If you need a special design and size PCD drill bit, please do not forget to provide the following important information for our engineers' reference:
1. Type of drilling conditions (coal mining, geological drilling, quarries, etc.).
2. Formation type and hardness.
3. Requirements for drilling depth.
4. Special design precise drawings.
Keywords
Customizable 105mm 4 Blades PDC drill bit with Long handle male thread
