Product Description
|
Size |
Diameter (mm) |
Height (mm) |
Diamond Layer (mm) |
EX |
SH |
SM |
|
1004 |
10.40 |
4.50 |
1.8-2.2 |
• |
• |
• |
|
1204 |
12.30 |
4.50 |
1.8-2.2 |
• |
• |
• |
|
1304 |
13.33 |
4.50 |
1.8-2.2 |
• |
• |
• |
|
1305 |
13.33 |
5.00 |
1.8-2.2 |
• |
• |
• |
|
1308 |
13.40 |
8.00 |
1.8-2.2 |
• |
• |
• |
|
1313 |
13.40 |
13.20 |
2-2.2 |
• |
• |
• |
|
1613 |
16.05 |
13.2 |
2.2-2.8 |
• |
• |
• |
|
1913 |
19.05 |
13.2 |
2.2-2.8 |
• |
• |
• |

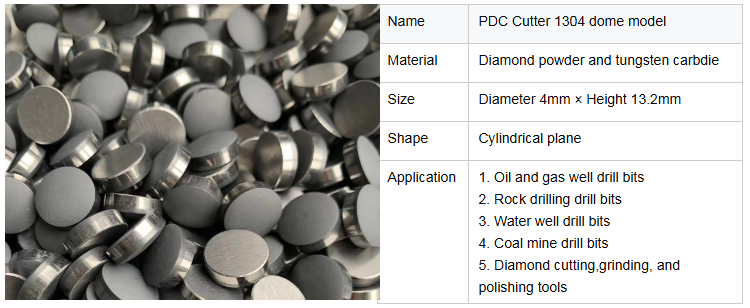

Diamond composite sheets are made by sintering diamond micropowders with a hard alloy matrix under ultra-high pressure and temperature. They possess the high hardness, wear resistance, thermal conductivity of diamond, as well as the strength and impact resistance of hard alloy. They are ideal materials for manufacturing cutting tools, drilling bits, and other wear-resistant tools. It has been widely used in industries such as oil drilling, geological exploration, coal mining drill bits, and mechanical processing tools.
FEATURES AT A GLANCE
1.The PDC cutter of two adhesive components - polycrystalline diamond composite sheet itself and tungsten carbide substrate.
2.As the matrix material of PCD, hard alloy not only has good toughness and certain hardness, but also has high impact strength, weldability, machinability, and compatibility with PCD.
3.The size of polycrystalline diamond composite sheets can be enlarged, and through laser cutting, they can be made into specific shapes to meet the requirements of different tools.
| PDC cutter for Coal mining,Geological exploration,Stone processing | |||
|
Model |
1005, 1304, 1308, 1313, 1608, 1613, 1908. 1913 |
1308 |
1305, 1308 |
|
Application |
Making geological and coalmine drill bits for medium-hard rocks |
Making geological&coalmine drill bits for soft rocks |
Makinggeological&coalmine drill bit for hard rocks |
|
Advantages |
High wear resistance and impact resistance. |
Faster rock breaking speed in soft rocks |
Longer useful life, and High impact resistance in hard rocks |
|
PDC cutters for oillgas drilling |
|
|
Model |
1005, 1308, 1313,1608,1613,1908, 1913, 1925 |
|
Application |
Mainly used for oil or gas drilling bits |
PRODUCT CONFIGURATION
Drilling and mining of PDC cutter
Suitable for drilling in soft and medium hard geological conditions with high impact toughness and thermal stability. High temperature resistance up to 750 ℃ (2 minutes), this product can be combined with flat and various groove shapes, and groove shapes can be designed, ground, products with special shapes, polished, chamfered, etc. according to user needs.
Why did you choose us?
Zhengzhou Sungood New Material Technology Co., Ltd. has 15 years of professional experience in the production of mining machinery mining tools and accessories. Its main products include PDC cutting tools, PDC drill bits, diamond drill bits, etc. Our products are sold to multiple countries and regions, and we have established stable cooperative relationships with more than 20 customers worldwide.
What can we offer you？
Zhengzhou Sungood New Material Technology Co., Ltd. has been developing new products mainly based on diamond composite materials and efficiently producing the following drilling tools:
※ PDC cutting tools/blades: 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1913... petroleum or mining types. ※ PDC core drill bits: diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm,113mm, 124mm, 127mm, 132mm, 146mm, 153mm, 190mm, 216mm，.......
※ PDC non core drill bits: including arc angle drill bits, flat top
drill bits, and concave drill bits, providing products of any size from 50mm to 300mm. According to your needs, you can produce products such as two wings, three wings, and four wings; PDC anchor rods for roof bolt support: diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm Hard alloy drill bits: double wing coal drill bits, chisel drill bits, cross drill bits, button drill bits, hammer heads According to your needs, we can provide you with customized products, including trademarks, packaging, etc
PACKAGING AND DELIVERY
Single carton box package, safe and regular placement.
Samples are shipped by express, batch products are shipped by sea or by air.
Delivery: 1-5 days for samples, 1-15 days for batch products.
